Stoplight

Stoplight

Digital Technology  Computer Science  Robotics

  • Project 7: Stoplight
  • Student Ages: 09-14 years old
  • Activity Time: 60 minutes
  • Activity Level: Beginner Coder

Prerequisites

Get Started

Learning Objectives

  • Create a Kodu world to control the Sky in game using BBC micro:bit PO and P1 on the BBC micro:bit and a photoresistor.

Contents

Student Activities

To create a Kodu world using tiles specific the BBC micro:bit, make sure you connect a micro:bit device and install the mbed serial port driver

Welcome! This activity will teach you how to control the Sky with the micro:bit P0. Let's get started!

Make Steps

Materials

  • BBC micro:bit, Micro USB cable
  • Photoresistor
  • Resistor (560 Ohm)
  • Crocodile clips
  • Male-Male Jumper wires

Step 1: Jumper Cables

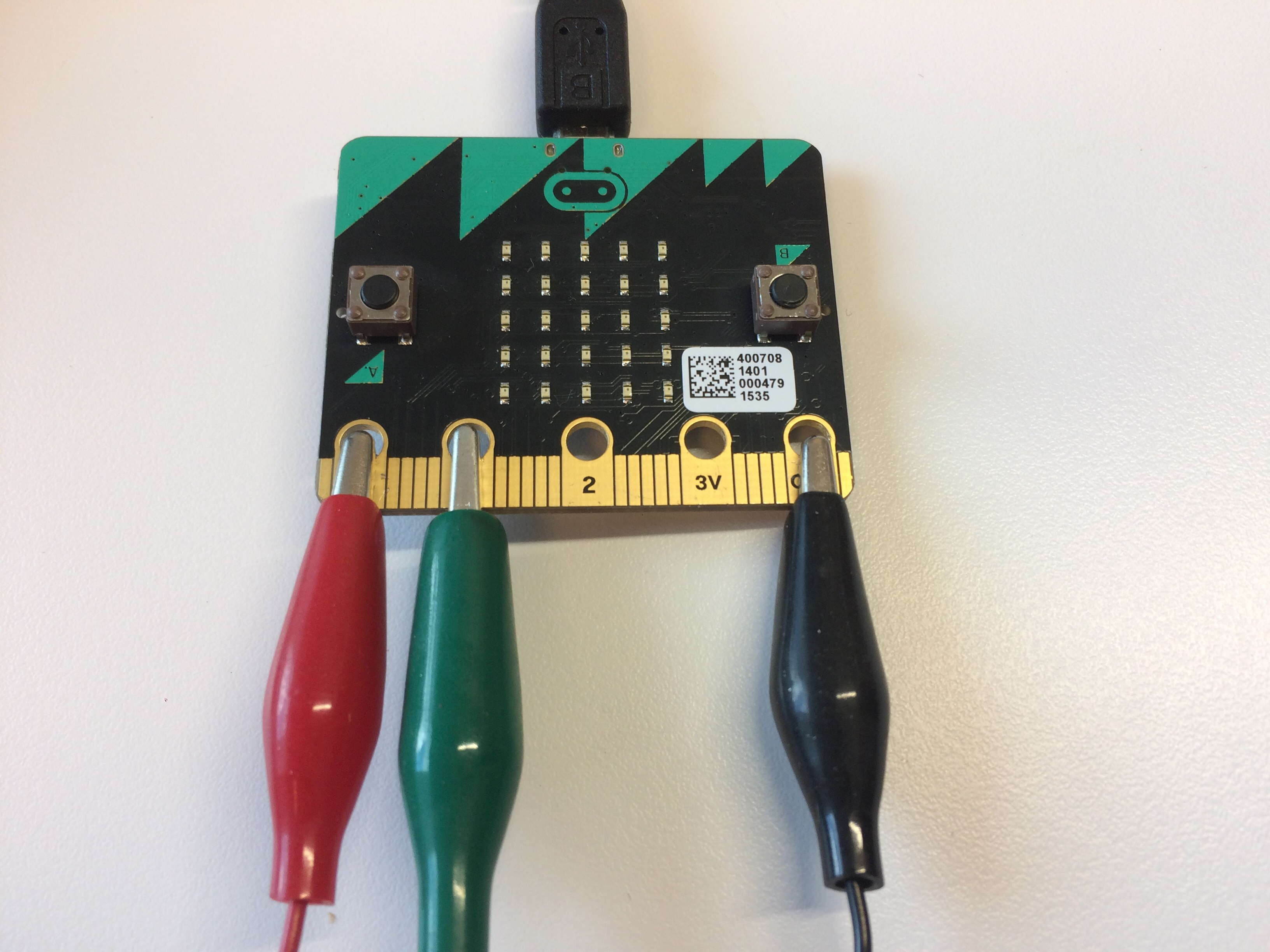

Connect one side of a Crocodile clip to GND on the micro:bit (usually black). Connect one side of a second Crocodile clip to P0 on the micro:bit (usually red). Connect one side of a third Crocodile clip to P1 on the micro:bit.

Jumper Cables

Step 2: Male-Male Jumper wires

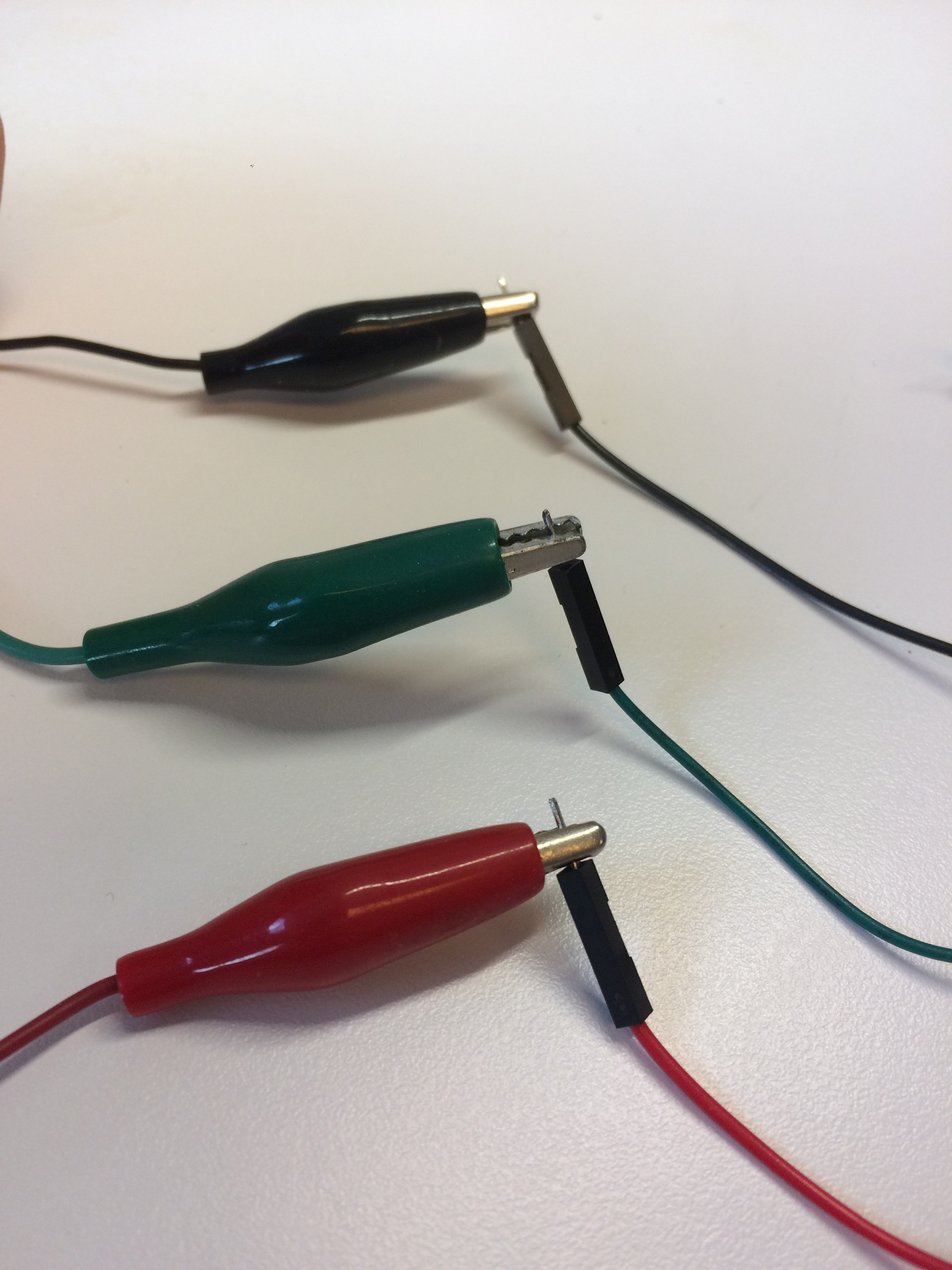

Attach Crocodile clips to Male-Male Jumper wires (usually matching colors).



Male-Male Jumper wires

Step 3: Breadboard

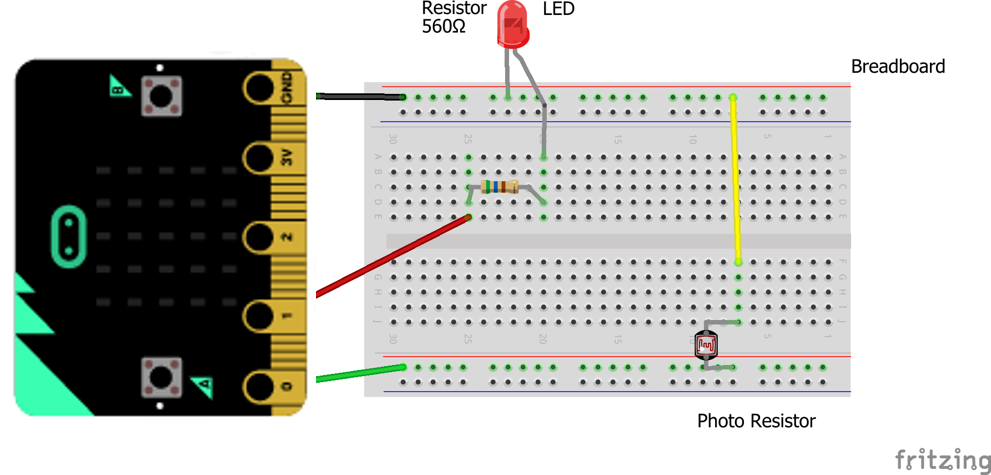

  • LED is connected to Pin 1 (P1), and between this link there’s a resistor.
  • Photoresistor is connected to Pin 0 (P0) and Ground respectively.

Breadboard

Code Steps

Step 1: Add an Object

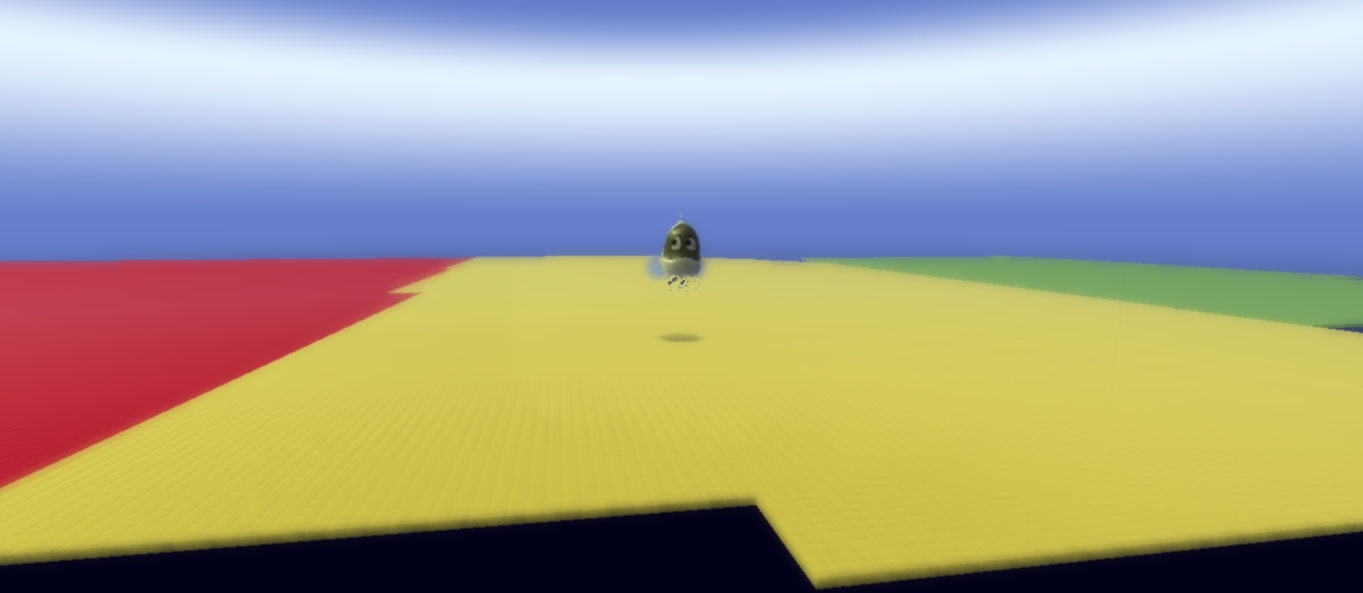

Start Kodu Game Lab. Select the New World option from the Main Menu, and Kodu Game Lab will open and display a patch of ground directly in the center of the screen.

Select the Object tool (the Kodu icon on the toolbar). Move the mouse pointer to the center of the terrain and click and release the left mouse button, which opens the pie menu. Use the mouse to select your moving object, such as Kodu.

Add Objects

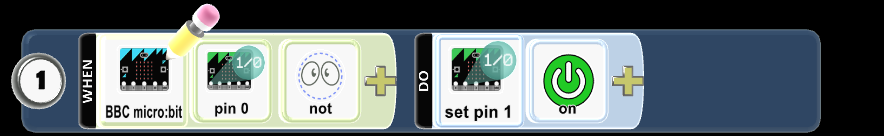

Step 2: Program Kodu - P0 Set Current State On

You want to Kodu to respond to the BBC micro:bit input. Let's explain the first line.

  • Pin 0 - Read state of BBC micro:bit pin 0.
  • Not - React when the when condition doesn't match.
  • Set Pin 1. Sets the digital output state of the pin.
  • On - Set the current state to on.
  •

Set Pin 1 On

Step 3: Program Kodu - Change the Sky

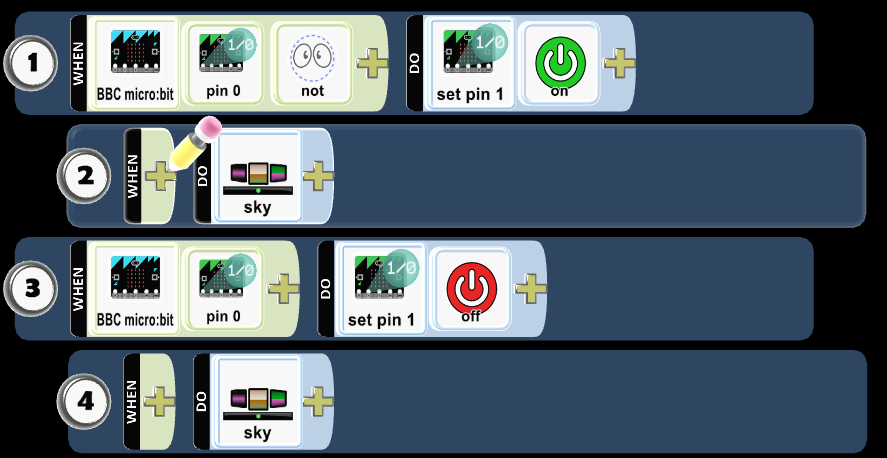

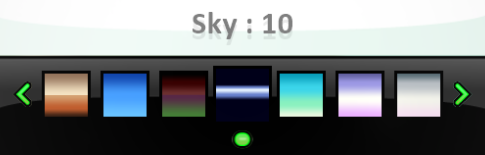

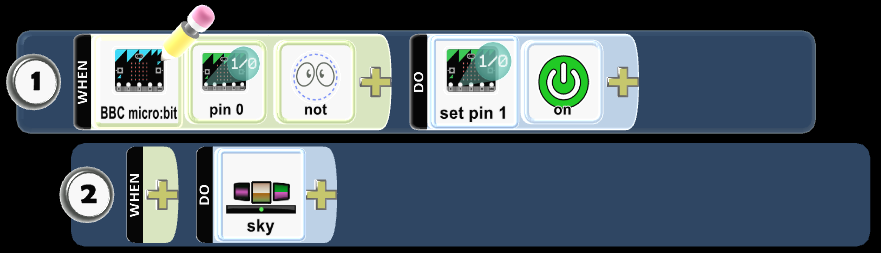

Move line 2 to be underneath line 1. This will make line 2 a child to 1. When Pin 0 is not on, the micro:bit will set pin 1 on. When pin 1 is on, the Sky is 10.

Sky

Sky

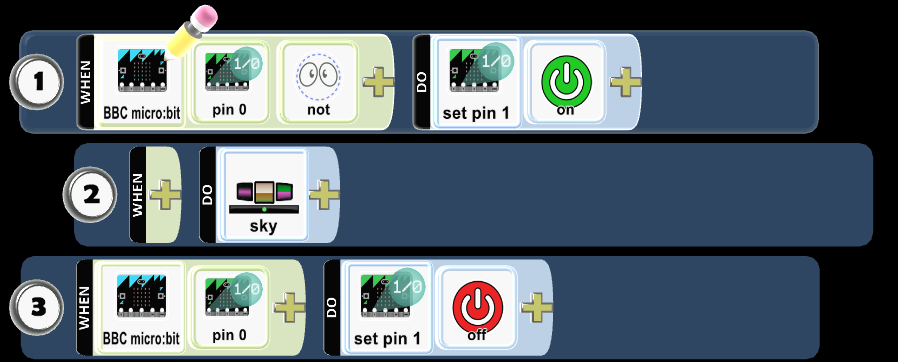

Step 4: Program Kodu - P0 Set Current State Off

You want to Kodu to respond to this BBC micro:bit input. Let's explain the line 3.

  • Pin 0 - Read state of BBC micro:bit pin 0.
  • Set Pin 1. Sets the digital output state of the pin.
  • Off - Set the current state to off.
  •

Set Pin 1 Off

Step 5: Program Kodu - Change the Sky

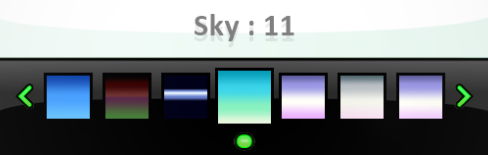

Move line 4 to be underneath line 3. This will make line 4 a child to 3. When you set Pin 1 on, the Sky will be 11

Pin 0

Pin 0

  • Play Game and cover then uncover the photoresistor to see if the code works as expected.
